Unlocking the World of Digital Circuits: A Fun Guide to How Electronics Think!
Digital circuits might sound complicated, but they’re all around us—in our phones, computers, and even the remote control for the TV. These tiny systems are like the brains of our electronics, helping them make decisions and do amazing things. For example, when you press a button on a microwave, digital circuits ensure it starts cooking for the correct time. They also control traffic lights, make gaming consoles fun, and even help rockets navigate in space! In this guide, we’ll break it all down into simple and fun ideas, so you can start understanding how digital circuits work. And who knows? Maybe you’ll even be inspired to create your own one day!
Table of Contents
What Are Digital Circuits?
At their core, digital circuits are systems that process information using two simple states: ON and OFF. Imagine a light switch—it’s either on (1) or off (0). That’s exactly how digital circuits think, using what’s called the binary number system to represent everything. Digital circuits are like the building blocks of modern technology, enabling everything from calculators to space exploration. For example, they power the digital alarms that wake us up in the morning and are used in cars to control GPS systems and safety features like airbags. Without digital circuits, modern life as we know it wouldn’t exist.
Fun Fact: Your smartphone, which can do millions of things, is built on this simple idea of 1s and 0s! Did you know a single text message you send is converted into binary code before it travels across the world?
Digital vs. Analog: What’s the Difference?
Electronics can work in two main ways:
- Analog signals: Like the volume knob on a radio, analog signals are smooth and can have any value in a range. They are more like natural phenomena, such as sound waves or temperature variations.
- Digital signals: Like a light switch, digital signals are either ON (1) or OFF (0). These signals are more precise and easier to work with in modern electronics.
Digital circuits are faster and more reliable because they’re less affected by things like noise (unwanted signals). For example, while an analog TV might show a fuzzy picture due to interference, a digital TV gives you a clear image every time. Plus, digital circuits allow us to build devices that are smaller, more powerful, and can perform multiple tasks at once. Think of your tablet or gaming console—they’re powered by this incredible technology.
Comparison Tip: If analog is like drawing with a pencil, digital is like using LEGO blocks—precise and reusable for many designs! Digital signals are easier to store and replicate without losing quality, which is why they’re perfect for creating everything from crisp videos to reliable music files. Unlike analog signals that can degrade, digital signals stay consistent no matter how many times they are copied.
Binary Numbers: The Language of Machines
Machines don’t understand words or letters like we do. Instead, they use binary numbers, made up of 1s and 0s. Binary is the simplest way for machines to store and process data because it matches the ON and OFF states of digital circuits.
- A 1 means ON.
- A 0 means OFF.
Think of it like a secret code that machines use to store and process information. Every image, song, and even the text you read on a screen is ultimately translated into a string of 1s and 0s. Binary might seem complicated, but it’s what makes everything from your favorite video games to space probes work seamlessly.
Try This! Write your name in binary using an online converter—it’s like turning yourself into a code! Did you know every emoji or video you send also has its own unique binary representation? For fun, try converting your birthday or favorite word too!
How to convert a decimal to binary?
Logic Gates: The Building Blocks of Digital Circuits
Digital circuits are built using tiny devices called logic gates. These gates make decisions based on input signals. Here’s a quick overview:

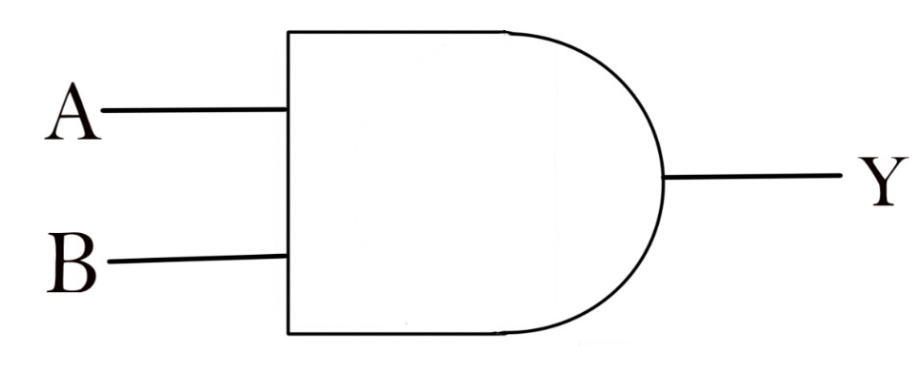

AND Gate:
- Think of it as a rule: “If both switches are ON, the light turns ON.”
The input at A and B can be 0 or 1. Like ON or OFF.
Y is expressed as Y= A AND B,
If we express with logic mathematical symbols, Y = AB.
If both input A AND input B is ON, the output Y is ON. Otherwise, output Y is OFF.
In other word, if A = 1 and B = 1, Y = 1. In other case, Y is 1.
| Input A | Input B | Output Y = A AND B |
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
OR Gate:
- “If either switch is ON, the light turns ON.”
The input at A and B can be 0 or 1. Like ON or OFF.
Y is expressed as Z= A OR B.
If we express with logic mathematical symbols, Z = A+B.
If both input A OR input B is ON, the output Z is ON. Otherwise, output Z is OFF.
In other word, if A OR B is 1, Z = 1. Otherwise, output Z is 0.
| Input A | Input B | Output Z = A OR B |
| 0 | 0 | 0 |
| 0 | 1 | 0 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
NOT Gate:
- “If the switch is OFF, the light turns ON.”
The input at A can be 0 or 1. Like ON or OFF.
Y is expressed as Z= NOT A.
If we express with logic mathematical symbols, Z = ~A.
If the input A is ON, the output Z is OFF.
If the input B is ON, the output Z is ON.
In other word, if A = 0, B = 1 and if A is 1, B = 0.
| Input A | Output Z = NOT A |
| 0 | 1 |
| 1 | 0 |
By combining these gates, we can create circuits that do all sorts of useful tasks. For example, logic gates work together in a calculator to add numbers, help display the images on your phone screen, or even control the movement of robots. These small building blocks make complex operations possible, like sending a text message or running a video game.
Fun Fact: Logic gates are so fast that they can perform billions of operations every second! That’s how your computer can handle multiple tasks at once, from opening apps to streaming videos without delay.
Types of Digital Circuits
Digital circuits come in two main flavors:
1. Combinational Circuits
These circuits don’t remember anything—they only care about the inputs right now. For example, a calculator adds numbers based on what you press, but it doesn’t remember the previous calculation. Combinational circuits are great for tasks that need instant results without needing to recall past information.
One of good example of combinational circuit is multiplexer.
How multipexer works:
- 2X1 mux has two inputs (I0, I1), one output (Z) and one select line (S).
- 2:1 multiplexer selects one of two inputs I0 and I1 based on a control select signal (S) and outputs the selected value (I0 or I1).
- If S = 0, Z = I0. This means, if select input S = 0, whatever signals I0 directly goes to Z. You can think as I0 gets connected with Z.
- If S = 1, Z = I1. This means, if select input S = 1, whatever signals I1 directly goes to Z. You can think as I1 gets connected with Z.
2. Sequential Circuits
These circuits can “remember” things. For instance, the scoreboard in a basketball game keeps track of the score as the game progresses. Sequential circuits use memory elements, such as flip-flops, to store information. This makes them perfect for tasks where history matters, like keeping time, recording steps on a fitness tracker, or running animations on a screen.
You can even create a basic memory circuit using two NOT gates. By connecting their outputs to each other’s inputs, these gates form a feedback loop, which can hold a single ON or OFF state until another signal changes it.
Activity Idea: Try identifying where you see combinational and sequential circuits in your daily life. Is it your alarm clock, your microwave, or the automatic door at your grocery store? It’s fun to spot how circuits work all around us!
Memory: Where Machines Store Ideas
Digital circuits also need memory to store information. There are three main types:
- RAM (Random Access Memory): Temporary memory for things your computer is working on right now. Think of it as a sticky note—it’s useful for quick tasks but gets erased when you’re done.
- ROM (Read-Only Memory): Permanent memory for important instructions, like how to start your computer. It’s like a book that can’t be edited.
- EEPROM: A memory that can be rewritten, like a USB drive. It’s both permanent and flexible.
Memory is what allows your computer to save a document, your phone to remember your favorite game, or your smart speaker to recognize your voice. Without memory, digital circuits wouldn’t be nearly as useful.
Example: When you save a photo on your phone, it’s stored in a memory chip so you can see it anytime. RAM helps load apps quickly, while ROM ensures your device starts up properly every time.
Integrated Circuits: Tiny Powerhouses
Ever wonder how computers became so small and powerful? The answer lies in integrated circuits (ICs).
- ICs are like tiny cities where millions of logic gates, memory units, and circuits live.
- They make devices smaller, faster, and smarter.
Fun Fact: Early computers were as big as a room, but today, an IC in your smartphone is smaller than your fingernail! With ICs, technology has advanced in ways our grandparents could only dream of. These circuits help power everything from gaming consoles to satellites orbiting Earth.
Designing Your Own Digital Circuits
Building digital circuits can be like solving puzzles! Engineers use tools like Karnaugh maps and Boolean algebra to simplify and design circuits efficiently. These tools make it easier to figure out how to connect logic gates to get the results you want.
Want to try it? Check out an online logic gate simulator to see how circuits work in real-time! You’ll see how logic gates combine to create things like calculators, alarms, or even small robots. For hands-on practice, beginner-friendly kits like breadboards and simple circuit-building sets are great starting points. These tools allow you to connect components and see your designs come to life. Starting with simple designs can give you a real sense of accomplishment.
Tip: Start with simple circuits like a light that turns on when a switch is flipped, and then challenge yourself with more complex designs. You might even find a future career in engineering!
The Future of Digital Circuits
As technology evolves, digital circuits are becoming even more advanced. Here are some cool trends:
- FPGAs (Field-Programmable Gate Arrays): Circuits that can be reprogrammed to do different tasks. These are like the chameleons of digital logic, adapting to new challenges.
- AI in Circuits: Helping machines learn and think like humans, making smart homes and self-driving cars possible.
- Quantum Computing: The next big leap in circuit technology, using quantum bits instead of binary. Imagine computers solving problems that would take today’s machines thousands of years in just seconds!
Who knows? Maybe one day you’ll invent the next breakthrough in digital logic!
FAQs: Fun and Easy Answers!
Q: Why do computers use 0s and 1s?
A: Computers use binary because it’s simple and reliable—like flipping a switch ON or OFF. It’s the foundation of digital circuits.
Q: How do traffic lights know when to change?
A: They use sequential circuits, which “remember” how long each light should stay on. It’s like a timer that keeps everything running smoothly.
Q: How do traffic lights know when to change?
A: They use sequential circuits, which “remember” how long each light should stay on. It’s like a timer that keeps everything running smoothly.
Q: What’s inside a smartphone that makes it so smart?
A: Tiny integrated circuits packed with millions of digital circuits that process data lightning-fast. It’s like having a supercomputer in your pocket!
Conclusion: You’re On Your Way to Becoming a Circuit Wizard!
Now that you know how digital circuits work, the world of electronics is yours to explore. Whether you want to design your own circuits or just understand how your favorite gadgets work, the journey is full of discovery.
Why stop here? Try experimenting with online circuit simulators or dive deeper into fun topics like Verilog programming. Who knows—you might be the one to invent the next big thing in tech!
